Shattered Slabs

Definition:

A slab that is cracked in multiple locations such that the slab is separated into 3 or more pieces is termed a Shattered Slab. Slabs noted as shattered slabs should not be also noted as transverse, longitudinal or corner break. Figure 1 shows an example of corner break.

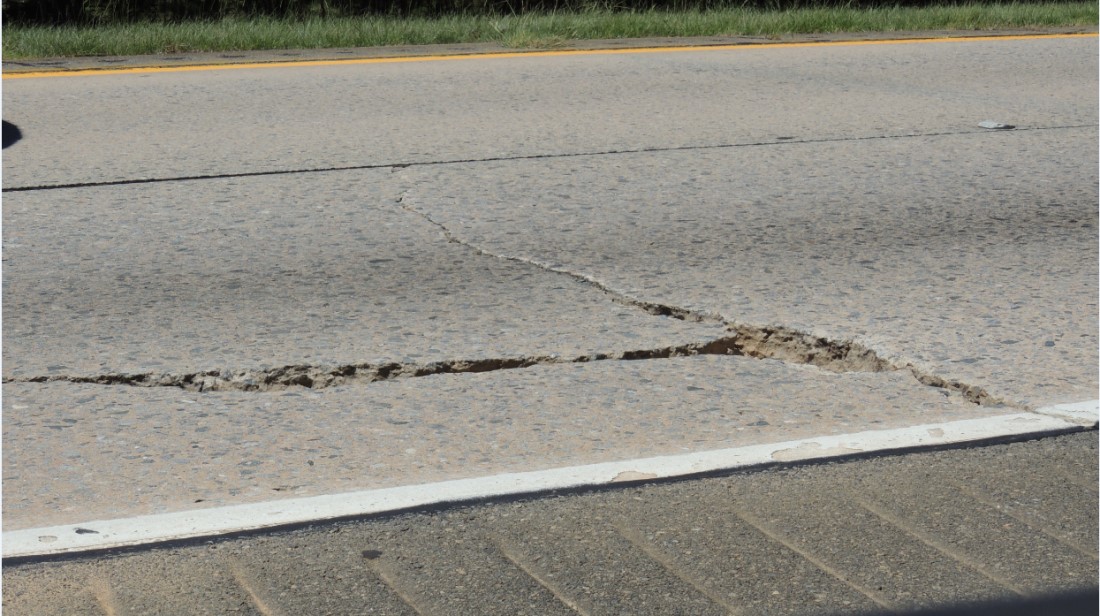

Figure 1. mages of shattered slab

How to measure:

There are no severity levels for Shattered Slab. If the slab is cracked into 3 or more pieces, it should be considered for replacement.

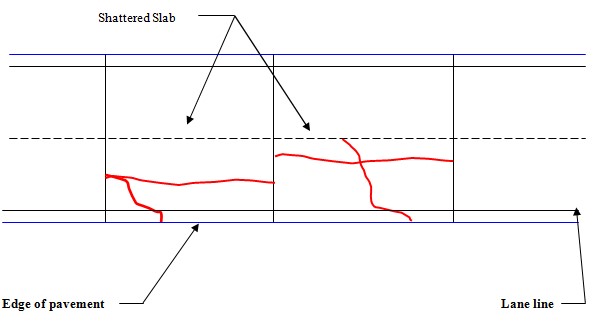

Figure 2. Illustration of shattered slabs.
